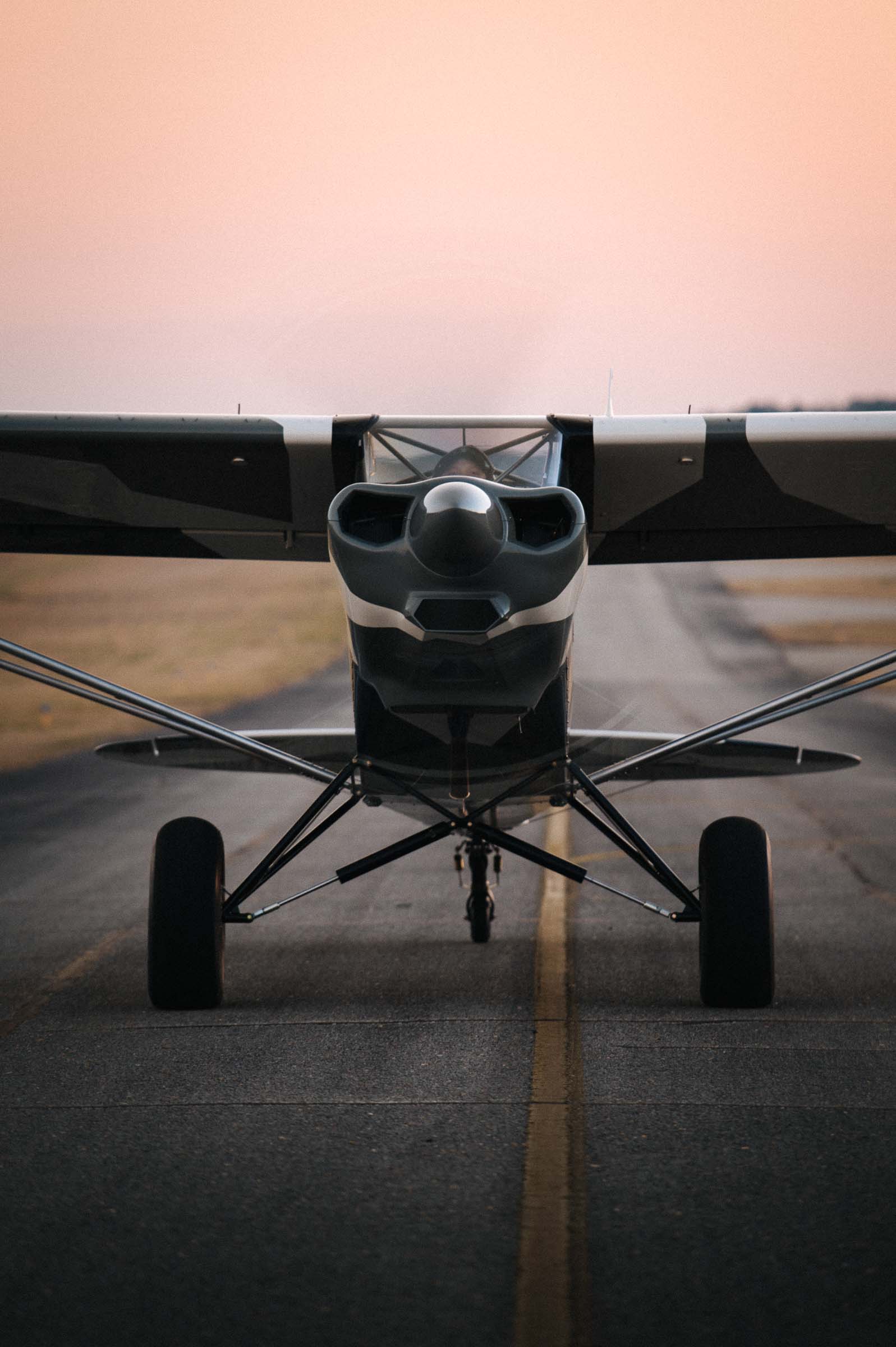

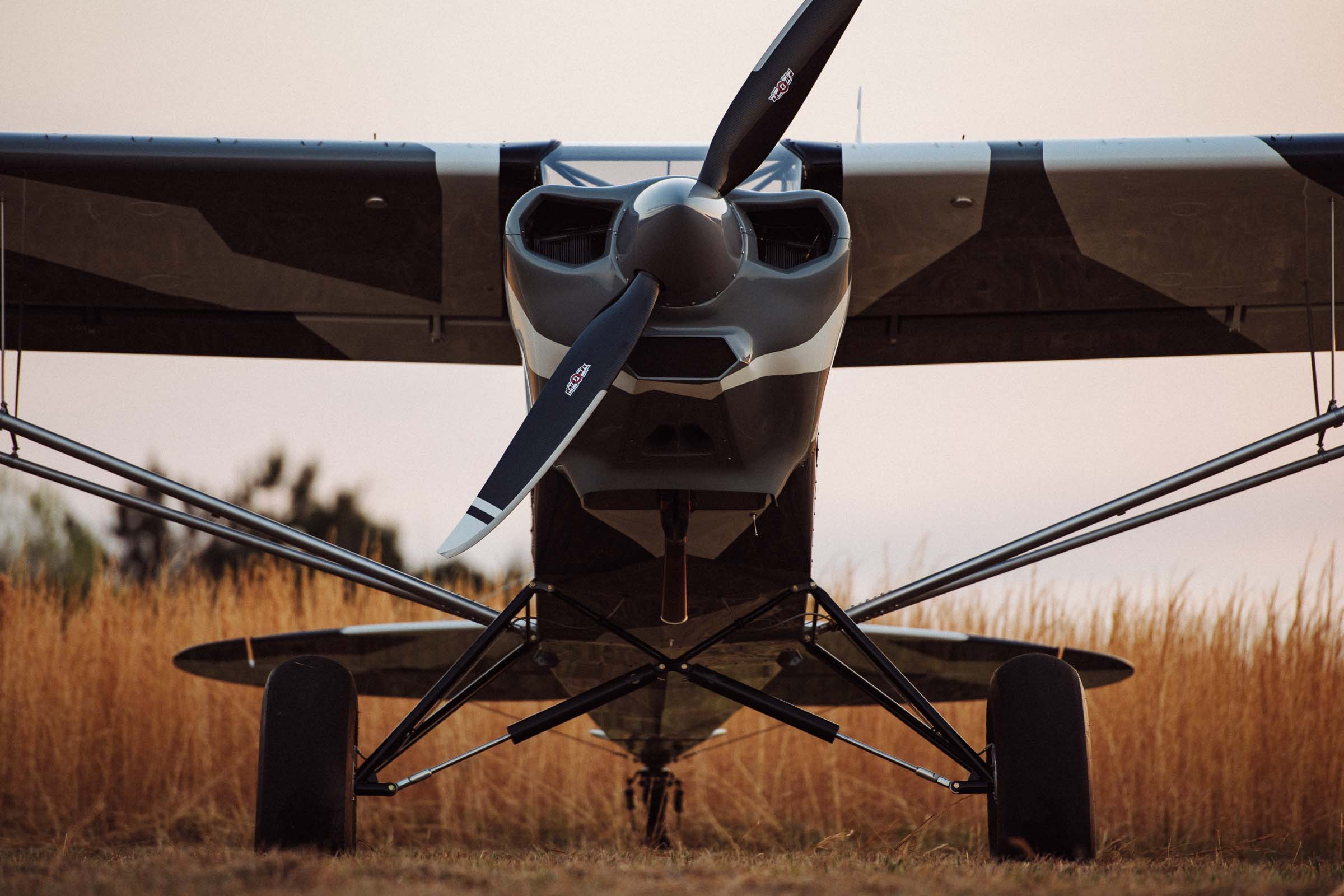

SUPER PATRIOT
After a decade of building, repairing, and restoring Super Cubs and Cub derivatives the Patriot Aircraft team set out to engineer a Cub that was faithful to the original while still taking things to the next level.
The Super Patriot combines iconic design with superb craftsmanship and innovative additions furthering the versatility, capability, and overall ownership experience.
HANDLING
The iconic handling and stall performance of a Cub starts to erode as more weight is added to the wing shape most commonly found on today's Cubs. We chose a larger square tipped wing resulting in superior handling with today’s heavier and more powerful engines. This is especially true at slow speeds and in high and hot conditions. The 4 hinged ailerons and larger flaps also increase performance.
Interior
From the fighter inspired panel shape, to the easily visible fuel selector valve ergonomics and the flying experience were priorities when designing the cockpit . The 4 inch wider cabin might be most notable in the massive back seat, being adjustable and having under seat storage means passengers will never be at a loss for space.
PERFORMANCE
The combination of a custom IO 320, Air Flow Performance fuel injection system, and E-Mags give the Super Patriot some truly modern muscle, delivering 176 horsepower without excess weight. 100 foot take offs and 2,500 fpm climb rates are easily achieved.
PERFORMANCE
The combination of a custom IO 320, Air Flow Performance fuel injection system, and E-Mags give the Super Patriot some truly modern muscle, delivering 176 horsepower without excess weight. 100 foot take offs and 2,500 fpm climb rates are easily achieved.
SAFETY
In our decade of repairing and restoring aircraft the places challenging to access were almost always neglected. Increased safety translated into unparalleled access to EVERYTHING!
Easy and quick remove engine cowl
Removable boot cowl panels
Removable panel below pilot
Removable panel below passenger
All interior panels
Hinged front seat pan
Large rear panel under jackscrew Oversized Wing inspection panels
We set out to reimagine the ownership and maintenance experience while also increasing safety along the way.
SPECIFICATIONS.
Seats
2
Empty Weight
1025 pounds
Gross Weight
1900 lbs
Useful Load
875 lbs
Fuel Capacity
36 gallons
Engine
IO 320 (Modified)
Horse Power
176
Frame Style
Reinforced Super Cub
Rate of Climb
2,500 fpm
Stall Speed
32 mph
Take off Distance
89 Feet
Landing Distance
200 Feet
Economy Cruise
90 mph
Certification
EAB [Factory Builder Assist]
Warranty
1 Year
ORDER FORMUNIQUE FEATURES
Glass Panel STANDARD
More situational awareness increasing safety
Proven Fuselage
Strong robust frame with a history of reliability and longevity
Light Weight Improved Strength Wings
Decreased weight without sacrificing strength
4 Inch Wider Cabin
Increased space and comfort
Epoxy Coated Frame
Significant increased longevity
Larger Flaps
Better STOL performance
Titanium Gear Available
Reduced weight with added strength
Bearinger Wheels & brakes Available
Reduced weight with increased breaking performance
Digital Vertical Power System
Intuitive easy use and allows for unlimited customization w/ automatic reset
Solid State Basic Power System (PPS)
Isolates starter cylinode and master cylinder for increased safety reliability
Aggressive Carbon Cowl
Better cooling with less drag
Ground Adjustable Prop
Optimum performance for your mission while reducing weight
Self Powered Electronic Ignition
No ignition backup battery required eliminating limited emergency range
Fuel Injection
More power and increased efficiency
Cold Air Sump
Optimizing engine performance
Unparalleled Access To All Components
More visibility and easier maintenance increases safety
Easily Removed Interior Panels
More visibility and easier maintenance increases safety
Newly Designed Window Latch
Holds window open well above 80 mph
Opening Rear Window
Easier access to cargo area
ORder Today
Forever in a category of its own, the Cub gives every pilot the thrill of flight while having capabilities that provide unparalleled access to explore new territory. The Super Patriot is the uncompromising embodiment of a legendary aircraft taken to the next level. Lets talk about getting you in the air.
